Spirit Levels

A bubble level, also known as a spirit level, is an instrument designed to indicate whether a surface is perfectly horizontal (level) or vertical (plumb). It consists of a slightly curved glass vial containing a liquid, typically alcohol or another spirit, with an air bubble inside. The operating principle of a bubble level relies on the fact that the air bubble will always rise to the highest point within the curved vial due to its buoyancy. When the vial is placed on a perfectly level surface, the bubble will rest at the centre of the vial. However, if the surface is not level, the bubble will move away from the centre, indicating the degree and direction of tilt or slope. Proper calibration and handling are crucial for maintaining the accuracy and reliability of bubble levels, as they are sensitive instruments susceptible to damage or shifts in calibration over time.

Types of Bubble Levels

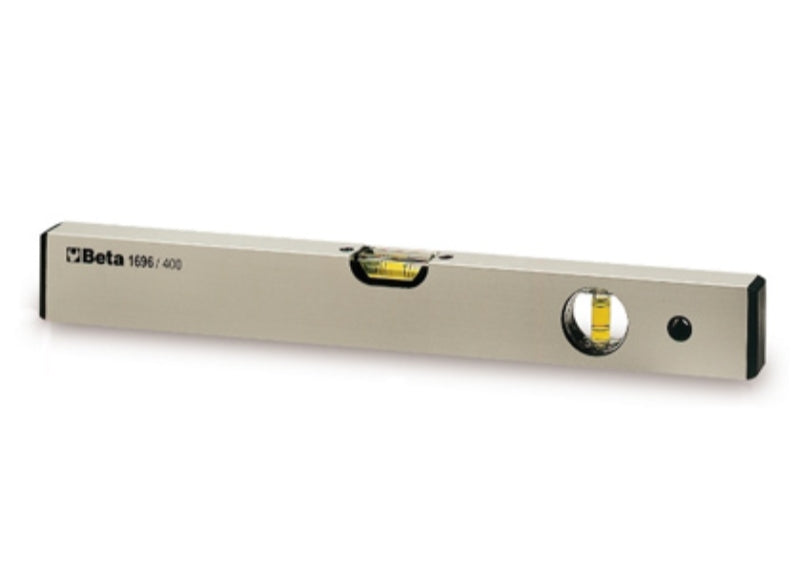

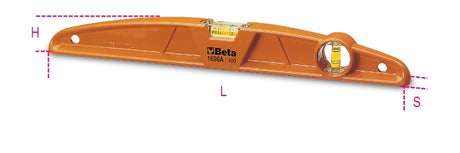

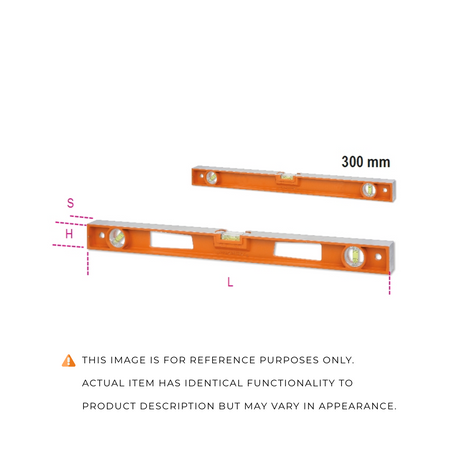

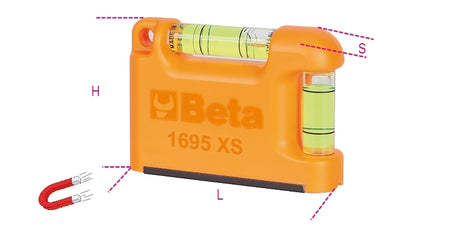

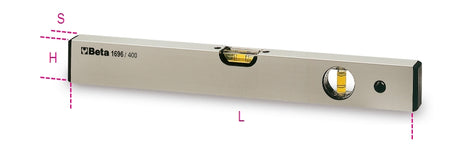

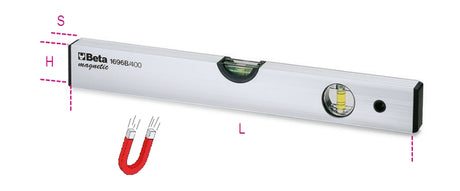

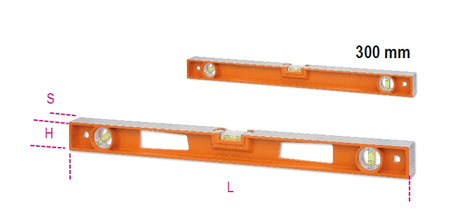

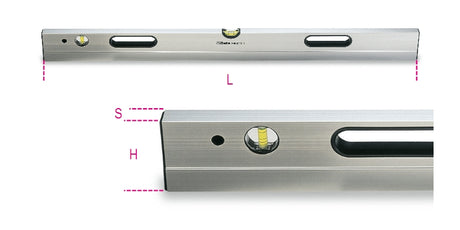

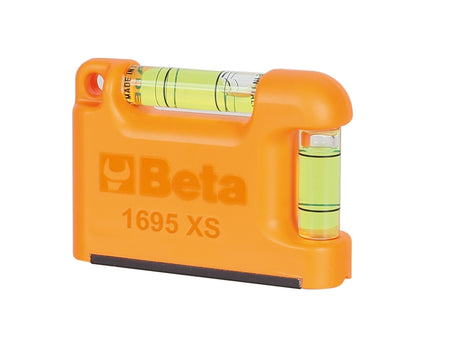

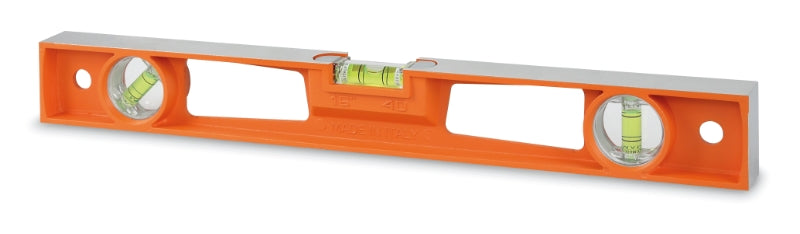

Tubular or Linear Levels: These have a horizontal vial for checking level surfaces and a vertical vial for checking plumb surfaces. They are commonly used in construction, carpentry, and other building trades. Bull's Eye or Circular Levels: These have a circular vial with concentric circles etched on the surface. They allow for checking level and plumb conditions simultaneously and are often used in metalworking, machining, and precision applications.

Key Features

Sensitivity: The sensitivity of a level refers to the angle or gradient change required to move the bubble by a certain distance (e.g., 2mm). Higher sensitivity levels are more precise but also more fragile. Vial Material: The vial is typically made of glass or acrylic, with glass being more durable and resistant to leaks and acrylic being more shatter-resistant. Mounting Options: Levels can be handheld, mounted on bases or frames, or integrated into other tools like transits or theodolites for surveying applications.

Applications

Bubble levels are widely used in various industries and applications, including:

• Construction and carpentry for leveling surfaces, aligning walls, and checking plumb
• Metalworking and machining for leveling machine beds and checking alignment
• Surveying and leveling for precise height measurements and establishing horizontal references
• Photography and videography for ensuring level camera positioning

Using a level crucial in construction for ensuring proper alignment, levelness, and plumbness, which are essential for the structural integrity, safety, and aesthetic appeal of buildings and structures. Here are the key reasons why spirit levels are important in construction: Ensuring Level Surfaces: Checking if surfaces like floors, countertops, shelves, and window sills are perfectly level. Even minor deviations from levelness can lead to functional issues, such as water pooling or objects sliding off surfaces. Maintaining Plumb Walls and Structures: Verify that walls, columns, and other vertical structures are perfectly plumb (perpendicular to the ground). Plumb walls are essential for structural stability and preventing leaning or collapsing over time. Aligning Framing and Foundations: During the construction of buildings, spirit levels are used to ensure that the framing and foundations are level and square, providing a solid base for the entire structure. Precise Installations: Spirit levels are necessary for the accurate installation of various components like cabinets, windows, doors, and fixtures, ensuring proper alignment and a professional finish. Quality Control: In construction projects, spirit levels are used for quality control checks at various stages, ensuring that the work meets the required specifications and tolerances for levelness and plumbness. Safety Considerations: Proper leveling and plumbing are crucial for the safety of structures, as deviations can lead to structural failures, uneven load distribution, or potential hazards like tripping or falling objects. Aesthetic Appeal: In addition to structural considerations, spirit levels are essential for achieving visually appealing and symmetrical constructions, where misalignments or unevenness can be easily noticed and detract from the overall appearance.
